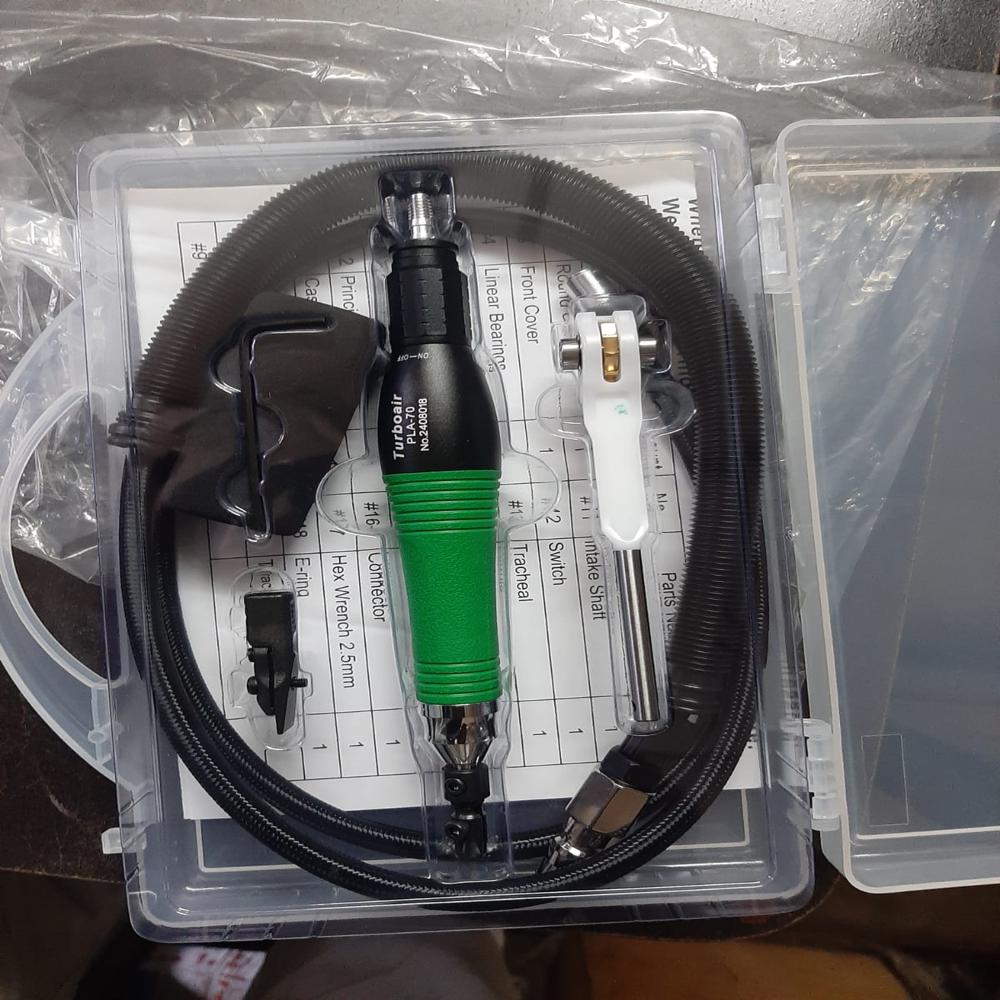

Air Lapper for Die Mould Polishing, Automation Grade: Semi automatic

Name: Air Lapper for Die Mould Polishing, Automation Grade: Semi automatic
Brand: SYNOPSIS INDIA
Price: 7500.0 INR
Availability: InStock

7500.0 INR/Piece

Get a Price/Quote

Product Details:

Frame Type Compact Handheld
Model No ALP-DA
Motor Power Pneumatic, no electrical motor used
Accuracy High precision surface finishing
Operating Temperature 5C to 45C
Connectivity Options Standard pneumatic air hose coupling
Production Capacity Continuous duty for extended hours
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Air Lapper for Die Mould Polishing, Automation Grade: Semi automatic Price And Quantity

Price 7500.0 INR/Piece
Minimum Order Quantity 1 Piece

Air Lapper for Die Mould Polishing, Automation Grade: Semi automatic Product Specifications

Production Capacity Continuous duty for extended hours
Connectivity Options Standard pneumatic air hose coupling
Accuracy High precision surface finishing
Operating Temperature 5C to 45C
Frame Type Compact Handheld
Motor Power Pneumatic, no electrical motor used
Model No ALP-DA
Lubricating System External air-line oiler required
Product Type Air Lapper for Die Mould Polishing
Power Not applicable (pneumatic tool)
Weight (kg) 0.34 kg
Usage & Applications Die mould polishing, finishing, deburring, and precision surface work
Operating Type Semi Automatic
Color Silver & Black
Machine Type Die Polishing Air Lapper
Surface Treatment Polished finish
Dimension (L*W*H) 190 mm (Length)
Technology Pneumatic
Drive Direct Pneumatic
Features Lightweight, Ergonomic design, Low vibration, High-frequency operation
Noise Level 70 - 80 dB
Cooling System Air cooled
Control System Manual with pneumatic button trigger
Pressure 5-7 bar (recommended operating pressure)
Power Source Compressed Air

Stroke Length 0.3 to 3.6 mm (adjustable)
Material Compatibility Steel, hardened steel, carbide, non-ferrous metals
Mounting Handheld, portable
Tool Holding Chuck Quick-change collet, 3 mm (standard)
Air Hose Inlet 1/4 inch BSP
Maintenance Requirement Regular lubrication and cleaning of air path
Air Consumption 0.16 to 0.20 m3/min
Accessories Included Standard set of abrasive stones and tools
Compatible Abrasive Tools Diamond files, ceramic stones, abrasive sticks

Product Description

Discover the Exclusive Air Lapper for Die Mould Polishing-a must-have tool for professionals seeking unmatchable performance in finishing, deburring, and precision surface work. With astounding accuracy and a gorgeous polished finish, this semi-automatic pneumatic device offers adjustable stroke length (0.3 to 3.6 mm) and a quick-change 3 mm collet for efficient tool swaps. Designed for compatibility with diamond files, ceramic stones, and abrasive sticks, its ergonomic, lightweight, and low-vibration form factor makes it ideal for handheld usage on steel, carbide, and more. Experience continuous, high-frequency operation with unmatched ease!

Versatile Precision for Professional Applications

The Air Lapper for Die Mould Polishing, with its semi-automatic operation, is engineered for astounding results in mould polishing, finishing, deburring, and ultra-precise surface work. Its adaptability allows use with various abrasive tools-diamond files, ceramic stones, and abrasive sticks. This versatile must-have finds applications in machining, tool rooms, automotive workshops, and mould manufacturing. The ergonomic, portable design offers a distinct advantage: superior accuracy and consistent results, even with prolonged usage, truly unmatched in the field.

Fast Shipping and Certified Quality Assurance

Every Air Lapper for Die Mould Polishing is shipped securely after thorough quality checks, ensuring each unit meets stringent standards. Dispatching typically occurs within a short timeframe following order confirmation, with delivery estimates depending on your location across the main domestic market of India. Each tool comes with certifications confirming compliance with industry benchmarks for safety, quality, and performance, granting you complete peace of mind with every purchase.

FAQ's of Air Lapper for Die Mould Polishing, Automation Grade: Semi automatic:

Q: How does the Air Lapper for Die Mould Polishing improve surface finishing accuracy?

A: The Air Lapper offers high-frequency operation and an adjustable stroke length, enabling precise and consistent surface finishing, even on complex or intricate die moulds.

Q: What abrasive tools are compatible with this pneumatic lapper?

A: This lapper supports diamond files, ceramic stones, and abrasive sticks, offering flexibility for a variety of finishing, deburring, and polishing tasks.

Q: When should regular maintenance be performed on the Air Lapper?

A: It is recommended to perform regular lubrication and cleaning of the air path after each use or as part of a routine maintenance schedule to ensure optimal performance.

Q: Where can the Air Lapper for Die Mould Polishing be used?

A: This tool is suitable for use in tool rooms, mould manufacturing units, automotive workshops, and anywhere precise polishing and finishing of steel, carbide, or non-ferrous metals are required.

Q: What are the benefits of using a semi-automatic pneumatic lapper?

A: Benefits include lightweight handling, low vibration, high-frequency operation, and continuous-duty capability for extended hours-delivering superior efficiency and unmatchable polishing results.

Q: How is the tool controlled and what type of power source does it use?

A: The lapper is manually controlled via a pneumatic button trigger and operates on compressed air, requiring no electrical power.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fiber Laser Cleaning Machine' category

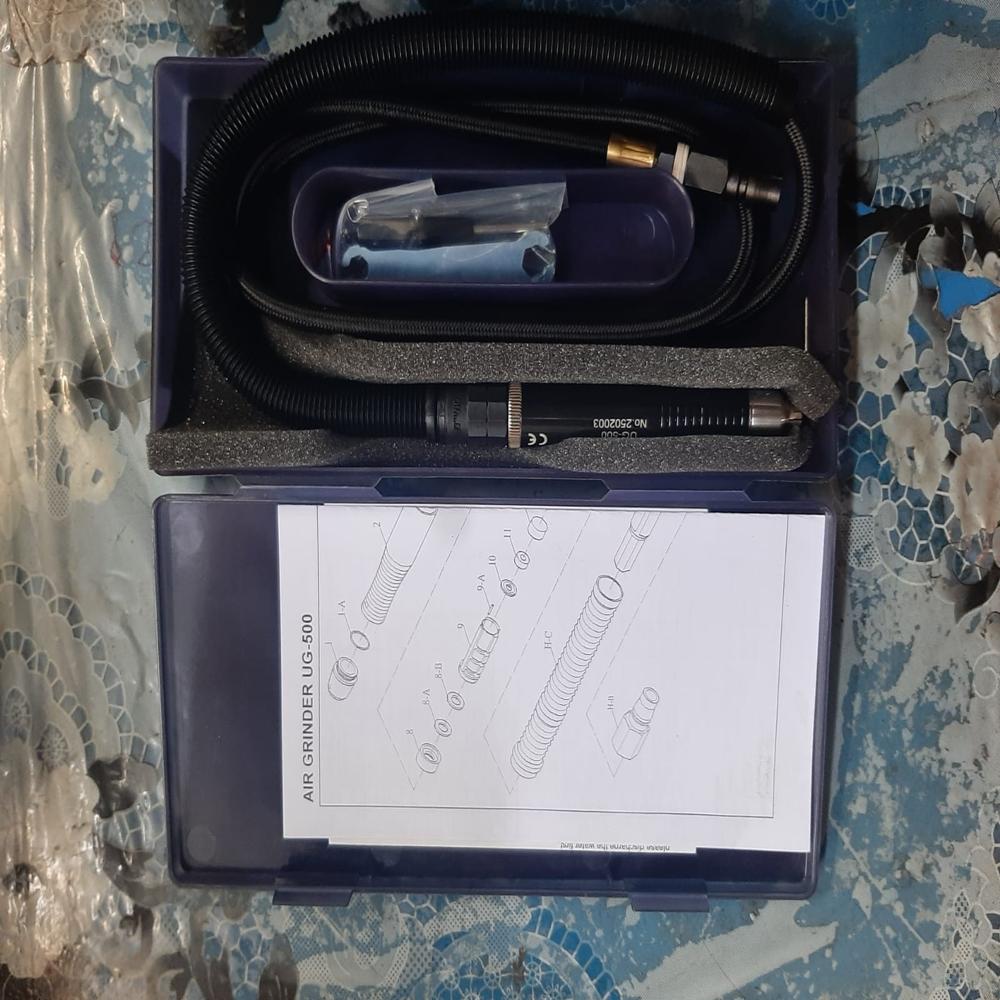

AIR GRINDER Price : 9500.0 INR/Piece Minimum Order Quantity : 1 Power : 0.25 HP Product Type : Other, Air Grinder Power Source : Pneumatic Technology : Other, Rotary Pneumatic Surface Treatment : Other, Powder Coated Usage & Applications : Grinding, Polishing, Deburring, Surface Finishing Operating Type : Other, Hand Held Frame Type : Compact Cylindrical Model No : AG02 Connectivity Options : Air Inlet 1/4 BSP Production Capacity : 500 Units/month Operating Temperature : 5C to 45C Accuracy : 0.01 mm Noise Level : <85 dB(A) Frequency : N/A (Pneumatic) Control System : Other, Lever Trigger Cooling System : Air Cooled Pressure : 6.3 Bar Drive : Rotary Vane Features : Lightweight, Ergonomic, Low Vibration Machine Type : Air Operated Power Rating : 180 W Dimension (L*W*H) : 165 mm x 38 mm x 38 mm Weight (kg) : 0.7 kg Color : Silver & Black Voltage : N/A (Pneumatic) Lubricating System : Oil Required Motor Power : N/A (Pneumatic)
